Villeroy & Boch Villeroy And Boch Viconnect Pro Toilet Frame With Chrome Flush Plate + Architectura Wall Hung Toilet

Villeroy and Boch Viconnect Pro Toilet Frame with Chrome Flush Plate + Architectura Wall Hung Toilet

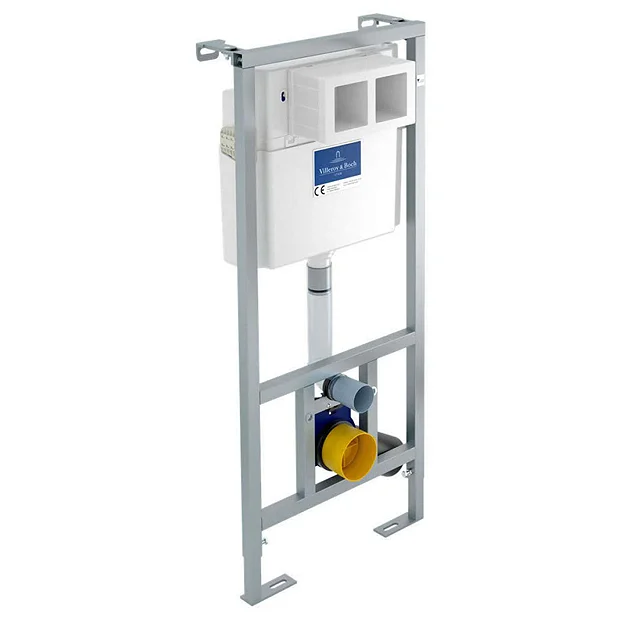

The Villeroy & Boch Viconnect PRO 1.12m Frame and Chrome Flush Plate is suitable for use with all wall hung toilet pans. The self supporting powder-coated steel frame can be fixed to most types of wall and has adjustable feet for uneven floors. The concealed cistern is insulated to prevent condensation, reducing the need for maintenance. As standard, the dual flush cistern provides a six or three litre option, but this can be adjusted to use even less water if desired. The Architectura wall hung toilet impresses with timelessly beautiful, puristic designs as well as high functionality. The DirectFlush pan is rimless for top cleanliness and perfect design while the sanitary ceramic is especially long-lasting and easy to clean. The toilet seat features soft close hinges to prevent slamming and quick release for easy cleaning.

Frame Details

• Height: 1120mm
• Width: 525mm
• Depth: 135mm
• For wall hung pans
• For covering with plasterboard, installation on a solid brick wall, in dry-wall constructions etc
• Easy connection to flush plate via flexible cables with bayonet joint
• Adjustment range of feet from unfinished floor level to upper edge of finished floor level: 0-200mm
• Depth adjustment front edge of element: 135-205 mm (when actuated from above 155-205 mm)
• Self-supporting powder-coated steel frame
• Fully pre-assembled
• Front operated
• With filling valve type AG (air gap) WRAS compliant
• Concealed cistern insulated against condensation water
• With dual flush (7.5-4.5 l / 4-2 l), maximal flush quantity 4/7,5 l, factory setting 6/3 l
• Filling valve Noise Class I
• 2-part angle valve connection set R1/2
• Drain bend clamp
• 4 adjustment settings
• PE toilet connecting bend DN 90 (Ø 90) with reducing sleeve DN 90 (Ø 90) / DN 100 (Ø 110) with protection plugs
• Complete WC connection set DN 90 (Ø 90) / 180 mm
• Protection box for access opening can be cut to size
• Flexible hose for filling valve
• Adjustable flush flow control for adaptation to rimless toilet bowls
• Certification marks for concealed cistern: Noise Class I
• EN 14055EN 14055
• Chrome dual flush plate
• 10 Year Guarantee

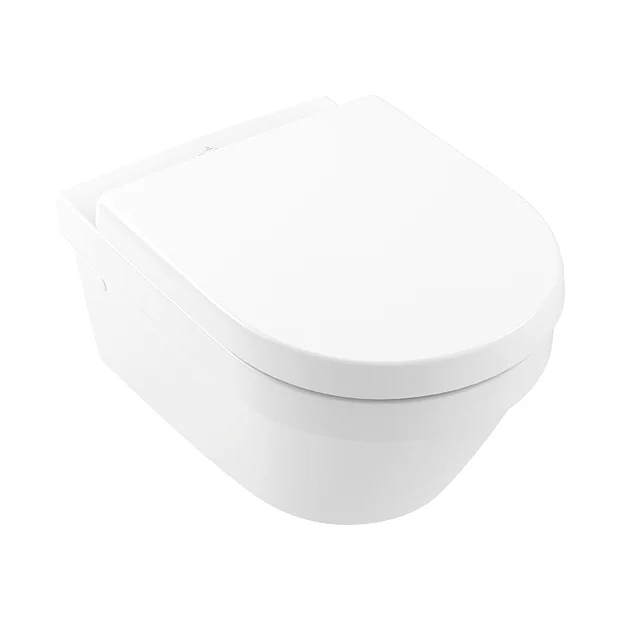

Toilet Details

• Finish: White Alpin
• Height: 400mm
• Width: 370mm
• Depth: 530mm
• Material: Ceramic
• DirectFlush rimless bowl
• Wall hung pan
• Horizontal outlet
• Soft close seat with quick release
• Guarantee: Toilet 5 Years, Seat 10 Years

All measurements are approximate

Images are for illustrative purposes only
