Ultra Ratio Concealed Twin Shower Valve With Built-in Diverter

Ultra Ratio Concealed Twin Shower Valve with Built-in Diverter – RATV52

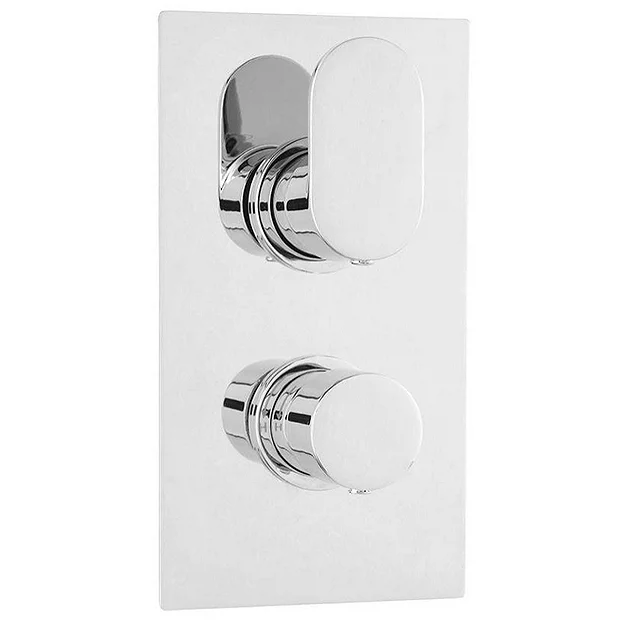

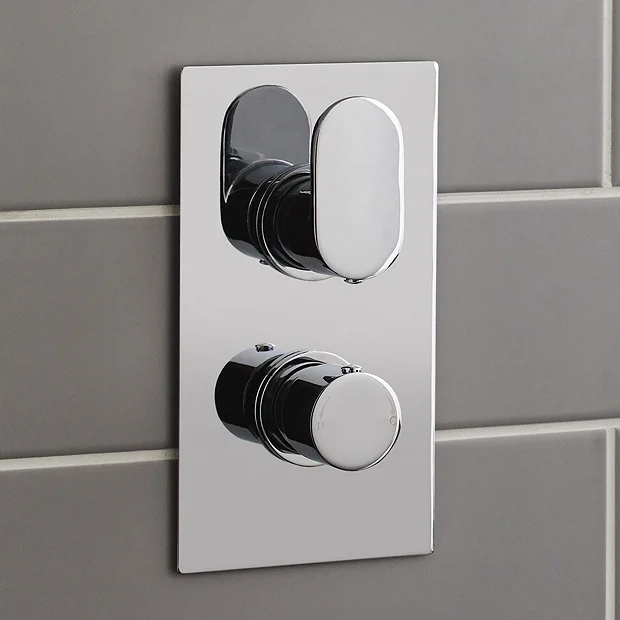

The Ratio Rectangular Twin Shower valve with Built-in Diverter – offers a flexible shower solution with a neat finish and is suitable for use with all water systems. Pipework is concealed for a minimalist look. Features easy to operate controls. Top control is the diverter to switch between shower accessories, the bottom control adjusts the temperature.

Diverts between two shower accessories: fixed head/slide rail kit, fixed head/body jets or slide rail kit/body jets.

Product Details

• Height – 215mm
• Width – 120mm
• Depth – 134.5mm
• Material – Brass
• Colour/Finish – Polished Chrome
• Pressure – MP – 0.5 Bar Minimum
• Faceplate – Rectangular
• Can be fitted vertically or horizontally.
• Accurate flow control.
• Thermostatic control to +/- 2 to 3°C even if the water pressure fluctuates.
• Full thermal protection to prevent scalding in the event of hot or cold water shut off.
• In the event of hot or cold water failure, the valve will shut down as per the relevant standard.
• The patented cartridge is highly resistant to calcium build up – even in hard water areas.
• Our valves are suitable for use with all systems: gravity fed, pumped, unvented high pressure or fully modulated combi-boilers.
• Excellent flow rates – even at low pressure.
• The cartridge is fully reversible, meaning if hot and cold supplies are the wrong way round, it doesn’t need re-plumbing.
• Simply remove the cartridge, turn 180°C and replace.
• Protection againest accidental scalding
• Standards – EN200 and/or WRc/NSF
• Suitable for all plumbing systems

Made in Britain

Guarantee – 10 Year

Flow Rates

0.1 Bar – N/A l/m
0.5 Bar – 13 l/m
1.0 Bar – 17 l/m
2.0 Bar – 24 l/m
3.0 Bar – 27 l/m
