Trafalgar Triple Concealed Shower Valve Inc. Outlet Elbow, Handset & Curved Arm With Fixed Head

Trafalgar Triple Concealed Shower Valve inc. Outlet Elbow, Handset & Curved Arm with Fixed Head

The Trafalgar shower package brings substantial elegance to any style of bathroom, includes a triple concealed Shower Valve, outlet elbow with handset and a curved arm with 12″ fixed over head shower rose.

The triple concealed thermostatic shower valve offers thermostatic showering via three easy-to-operate controls. Operates two shower accessories separately or simultaneously. Manufactured using high quality chrome and brass, our range of Edwardian shower valves will look outstanding in any shower enclosure.

A perfect solution for today’s bathroom, providing classic style and functionality.

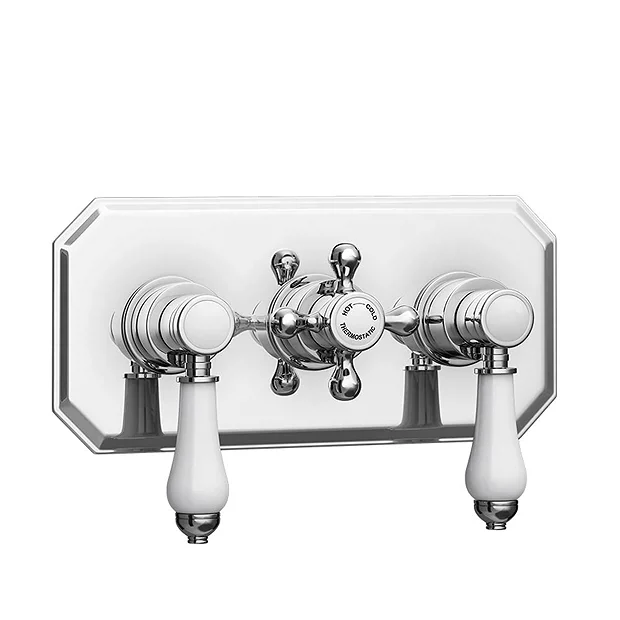

Shower Valve Details

• Height: 280mm
• Width: 130mm
• Type: Concealed Valve
• Style: Traditional
• Colour/Finish: Chrome
• Manufactured from highly durable brass
• Water Pressure: 0.5 bar to 5 bar

• Wall mounted
• Thermostatically controlled
• Classic face plate, lever and cross head handles
• Can be fitted vertically or horizontally.

• Separate controls for temperature and flow.
• Operates two shower accessories separately or simultaneously – 2 Outlets
• Suitable for modern pressurised plumbing systems.

• Hot water temperature 55 to 85 Degrees
• Shower valve will not work efficiently on a gravity fed tank system, unless a booster pump is installed.
• Should a pump be required we recommend a universal or negative head pump.
• Flow Rates:
• 0.5 bar – 9.6 L/M
• 1 bar – 14.1 L/M
• 2 bar – 20.5 L/M
• 3 bar – 24.8 L/M
• 4 bar – 28.3 L/M
• 5 bar – 32 L/M


Outlet Elbow inc. Hose & Handset Details

• Depth: 59mm
• Height: 226mm
• Width: 32mm

• Manufactured To The Highest Standards
• Round Handset with Built in Outlet
• 1.5m Shower flex: Brass / Chrome plated
• Outlet Elbow with Parking Bracket: Brass / Chrome plated
• Handset: ABS plastic / Chrome plated
• Rust resistant hose
• Highly polished finish
• Pencil handset holder
• Silicone nozzles mean that any lime scale deposits can simply be rubbed away

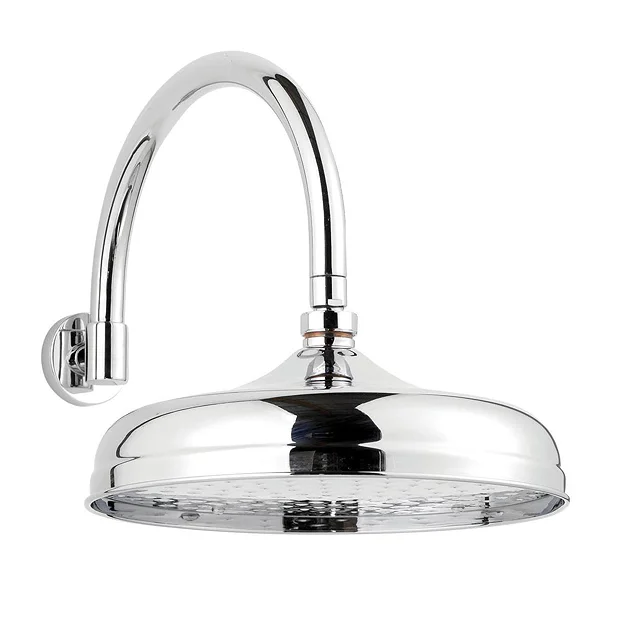

Fixed Head and Arm Details

• Round fixed 12″ head
• Shower Arm Length: 310mm
• Colour/Finish: Polished Chrome Finish
• Material: Heavyweight Brass Construction
• Create a classic bathroom statement
• Traditional Fixed Shower Head
• Curved Wall Mounted Arm
• High Quality Design
• Manufactured to the Highest Standards

Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

Pictures for illustrative purposes only.

All measurements are approximate

Comprises

(1) Trafalgar Traditional Triple Concealed Thermostatic Shower Valve
(1) 12 Inch Apron Fixed Shower Head with Curved Wall Mounted Arm – Chrome
(1) Round Outlet Elbow with Parking Bracket, Flex & Handset

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
