Nuie Windon Thermostatic Bottom Outlet Bar Valve

Nuie Windon Thermostatic Bottom Outlet Bar Valve – WIN503

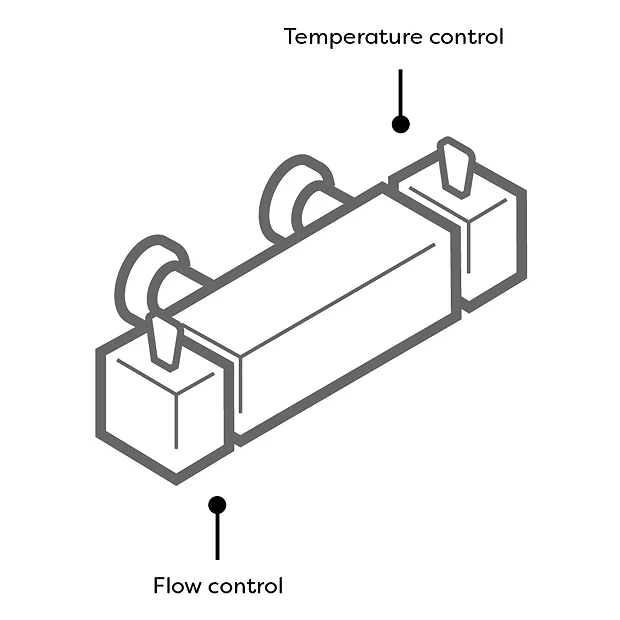

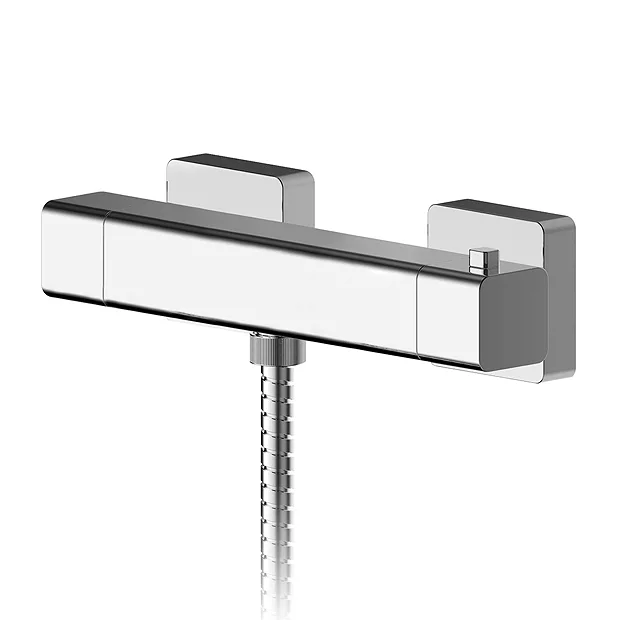

This stylish Nuie Windon bar shower valve features modern sleek styling with a chrome finish and has been constructed from brass and ABS. It offers thermostatic showering with two easy to operate controls, one operates flow control whilst the other allows temperature selection. Pair the with a modern riser kit for a clean, and modern shower look.

Product Details

• Brand: Nuie
• Product Code: WIN503
• Height: 55mm
• Width: 261mm
• Depth: 65mm
• Finish: Chrome
• Material: Brass / ABS
• Valve/Cartridge Type: 1/4 Turn Ceramic Disc
• Pipe Size: 15 mm (1/2″ BSP)
• Pipe Centres: 150mm
• Thermostatically controlled
• Exposed valve
• Bottom outlet
• Operating Pressure: 0.2 bar

All measurements are approximate

Guarantee: 5 Year

Please note: Does not include shower hose

Flow Rates

0.1 Bar – 3.3 l/m
0.2 Bar – 4.7 l/m
0.5 Bar – 7.9 l/m
1 Bar – 11.3 l/m
2 Bar – 16.2 l/m
3 Bar – 19.8 l/m
