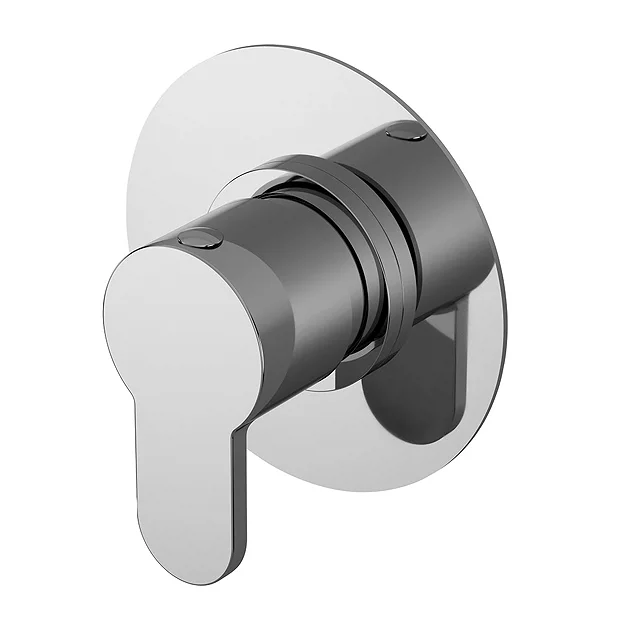

Nuie Arvan Concealed 2 / 3 / 4 / Way Diverter

Nuie Arvan Concealed 2 / 3 / 4 / Way Diverter – ARVWD14

For a sleek and contemporary look, the Arvan diverter valve is a great option. It features a round faceplate and matching rounded lever handle and comes beautifully finished in chrome. The water feed to this product will need to come via a suitable valve that has a built in on/off function (there is no on/off control with this diverter valve). These diverter valve models are operated manually, and are designed with multiple outlets which will allow up to four shower accessories to be used (only one shower accessory can be used at once as these are not designed for a “split” water flow between ports). Two blanking caps are also supplied to allow the installer to cap off any ports that are not required.

Designed for use with a Nuie Arvan thermostatic temperature control and stop tap.

Product Details

• Brand: Nuie
• Product Code: ARVWD14
• Height: 100mm
• Width: 100mm
• Depth: 135mm
• Finish: Chrome
• Material: Brass / ABS
• Valve/Cartridge Type: 1/4 Turn Ceramic Disc
• Pipe Size: 15 mm (1/2″ BSP)
• Concealed diverter valve
• Operating Pressure: 0.2 bar

All measurements are approximate

Guarantee: 5 Year

Flow Rates

0.1 Bar – 5.2 l/m
0.2 Bar – 8.5 l/m
0.5 Bar – 13.3 l/m
1 Bar – 19.1 l/m
2 Bar – 27 l/m
3 Bar – 33.2 l/m
