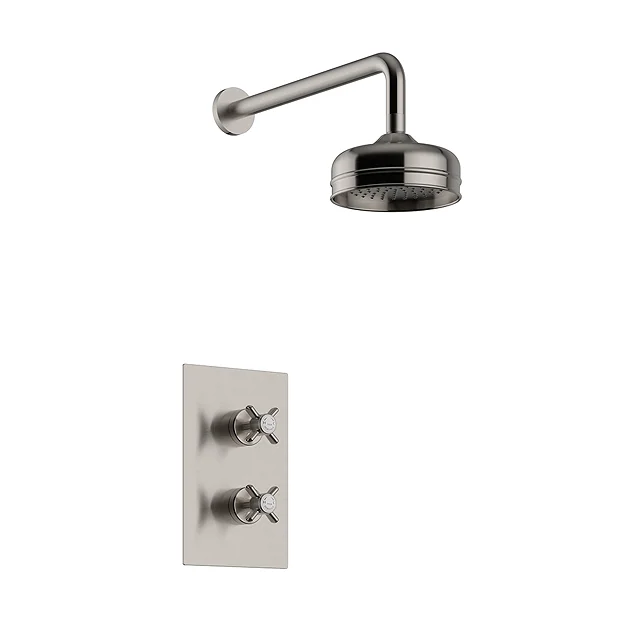

Heritage Dawlish Concealed Valve With 6″ Fixed Head – Brushed Nickel

Heritage Dawlish Concealed Valve with 6″ Fixed Head – Brushed Nickel – SDCDUAL12

Heritage’s elegant range of complete showers are precision engineered to provide a luxury showering experience. The shower valves are thermostatic so the water stays a consistent temperature even if the water pressure fluctuates.

This classic Dawlish shower features a 6″ fixed head and arm with a dual control thermostatic shower valve. The sleek elegance and timeless style makes it ideal for a traditional bathroom.

Product Details



• Finish: Brushed Nickel
• Construction: Body is of brass construction
• Valve type: Thermostatic
• Operation: Dual control
• Connection Inlet: 15mm compression elbows with 150mm centres
• Connection outlet: 15mm compression
• Working pressure range: 0.2 – 5.0 bar
• Flow rate open outlet: 9.0 l/m at 0.2 bar
• Suitable for all plumbing systems, ideally balanced
• Temperature: Preset 42°C
• Minimum fitting depth 35mm
• Ceramic Disc



5 Year Guarantee

Flow Rates

0.2 Bar – 4.2 l/m

0.5 Bar – 6.7 l/m

1.0 Bar – 9.5 l/m

2.0 Bar – 13.4 l/m

3.0 Bar – 16.4 l/m

5.0 Bar – 21.2 l/m
