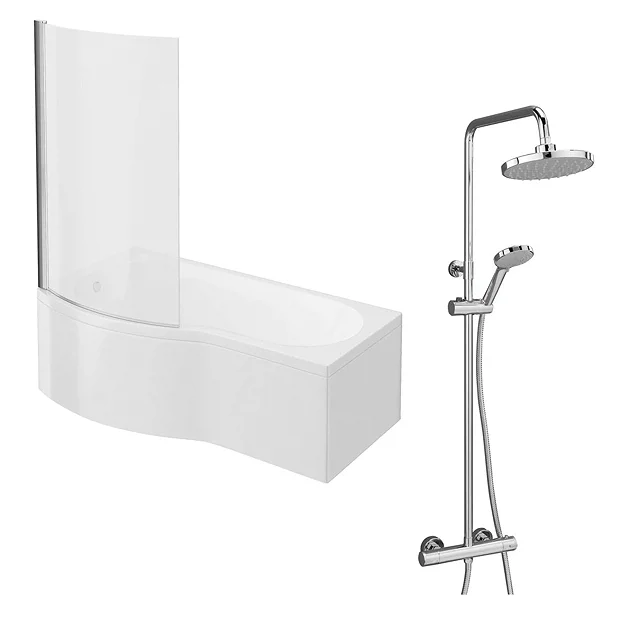

Cruze Shower Bath + Exposed Shower Pack (1700 B Shaped With Screen + Panel)

Cruze Shower Bath + 2 Outlet Exposed Thermostatic Shower Package (1700mm B Shaped with Curved Screen + Panel)

The Cruze shower bath with thermostatic Shower package, features a stylish overhead, rainfall type shower head and a handset too, for extra flexibility.

Modern shower baths which allow showering and bathing space in the bathroom. This 1700mm shower bath comes with a curved hinged bath screen and matching front panel manufactured from high quality gloss white acrylic.

All of our shower baths are available in left or right hand configuration, and are the new ideal solution for families looking to add a little luxury, whilst keeping an eye on space.

Please note, optional bath end panel (BBTEP) sold separately.

Bath Details

• Type: B-Shaped Shower Bath
• Dimensions: width 1700 x (depth at widest point) 900 / depth 736mm
• Bath Volume: 240 Litres
• Clean elegant contemporary design

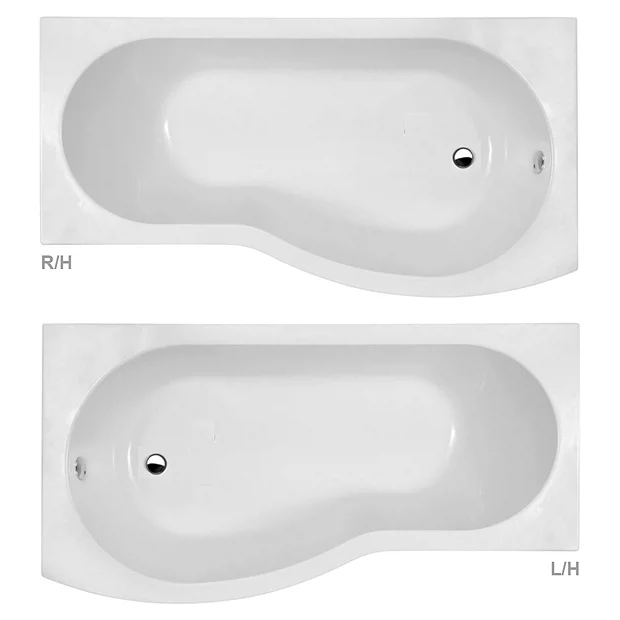

• Choice of Right or Left hand bath tub
• High quality build
• Practical design solution
• White Gloss Acrylic
• No tap holes
• White Gloss Acrylic Side Panel Included
• Supplied with Leg Set
• Guarantee: 5 Year

Curved Bath Screen Details

• Height: 1435mm
• Width: 850-870mm
• Manufactured to the Highest Standards
• Polished chrome
• Reversible
• Hinged bath screen
• Metal caps
• 5mm toughened safety glass
• Guarantee: 5 Year

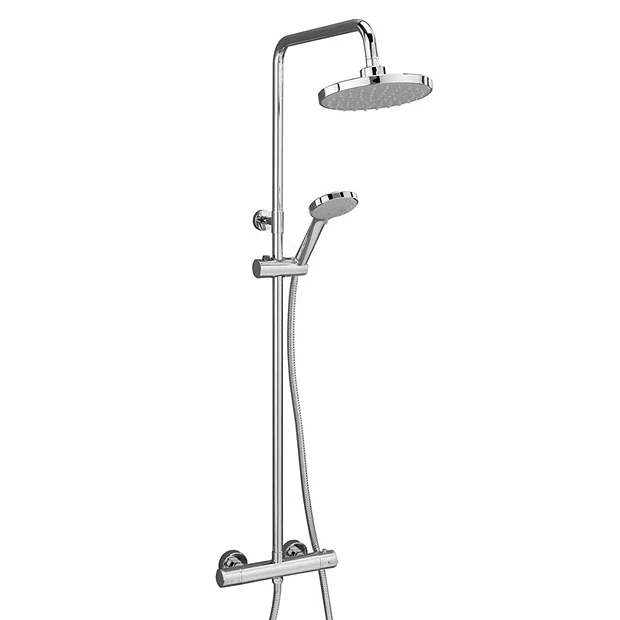

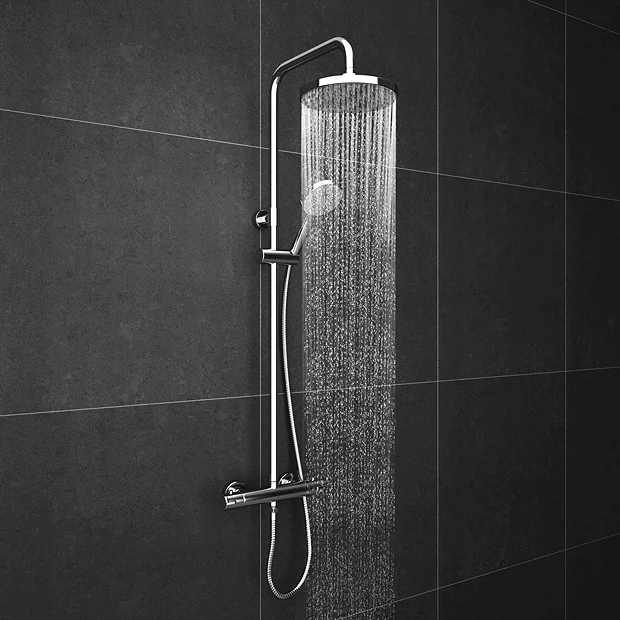

Exposed Shower Details

• Height: 850 – 1150mm
• Round Modern Thermostatic Shower
• Shower head size: 220mm
• Total projection: 340mm
• High quality design and build
• Adjustable height for handset
• Latest ceramic disc technology
• Finished in highly polished chrome
• Thermostatic system
• Working pressure between 0.5 to 6.0
• Minimalist shower system
• 1.5m Quality flexible hose
• Easy to clean rubber jets which are included on both the main shower head and handset
• Incorporating diverter to control flow between overhead to hand shower
• One fixed head and one handset.
• Lightweight handset minimises risk of damage to bath and/or shower tray in case of accidental droppage.
• Round thermostatic mixing valve of brass construction with built-in diverter and polished chrome finish.
• Rigid riser with polished chrome finish.
• Easy installation
• 150mm between pipe inlet centres
• For Gravity feed systems shower needs 5 meters of pipe between tank & shower head (we suggest using a shower pump).
• Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

End Panel, taps + waste not included

All measurements are approximate

Product images for illustration purposes only

Tap holes have to be drilled by customer

Comprises


(1) 1700mm B-Shaped Shower Bath with Leg Set
(1) B-Shaped Acrylic Bath Front Panel
(1) 5mm Curved Bath Screen
(1) Cruze Modern Thermostatic Shower – Chrome

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
