Chatsworth 1928 Traditional Twin Concealed Shower Valve

Chatsworth 1928 Traditional Twin Concealed Shower Valve

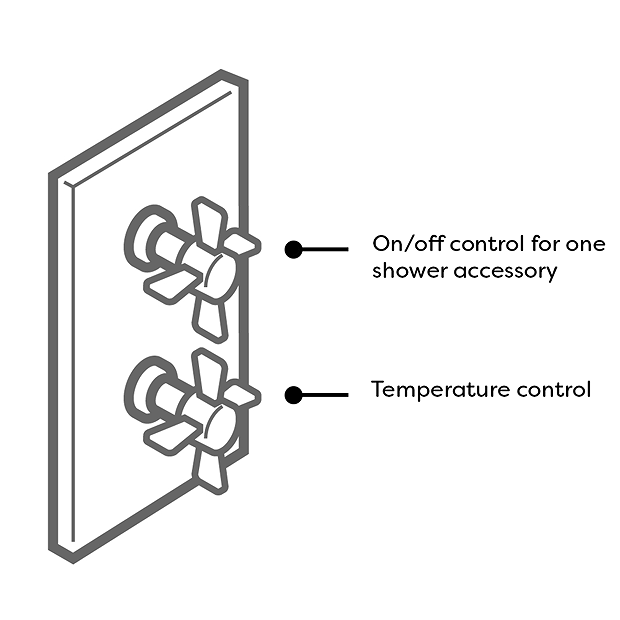

The Chatsworth 1928 traditional twin concealed thermostatic shower valve with stylish ceramic control dial offers thermostatic showering via two easy to operate controls, one operates flow control whilst the other allows temperature selection.

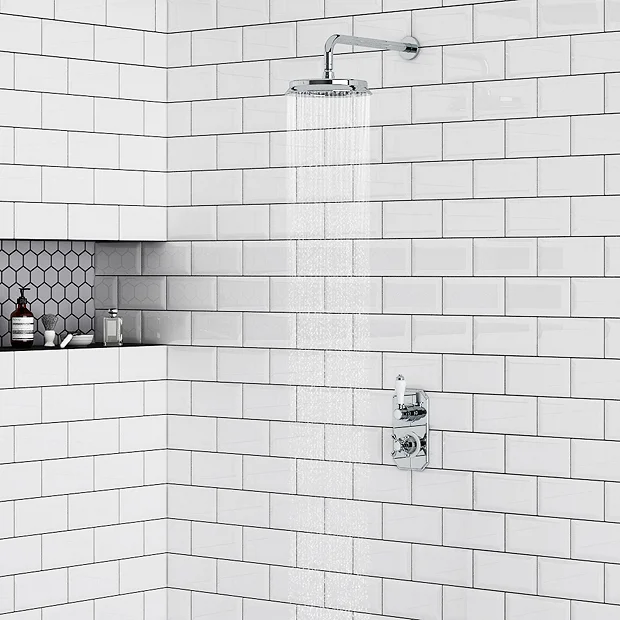

To be used with wall mounted head and arm, the classic style of this concealed shower valve adds a touch of sophistication and elegance in any bathroom. Manufactured using high quality chrome and brass, our range of traditional shower valves will look outstanding in any shower enclosure.

Product Details

• Width: 120mm
• Height: 210mm
• Type: Twin Concealed Shower Valve
• Style: Traditional
• Colour/Finish: White/Chrome

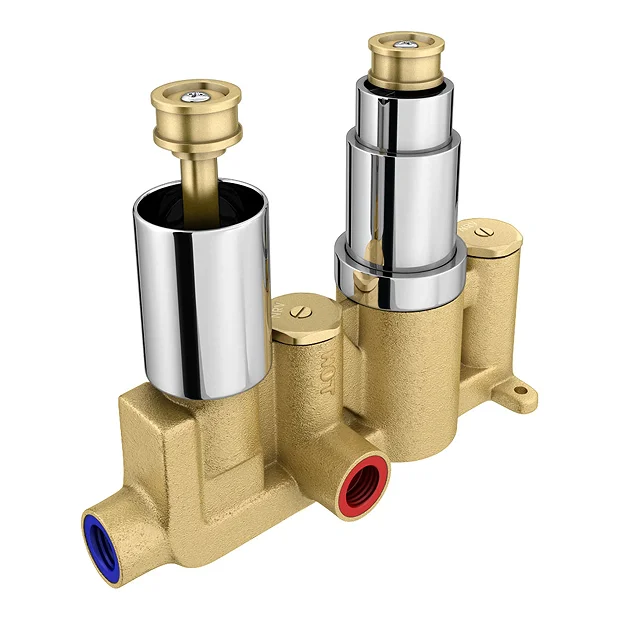

• Manufactured from solid brass
• Smooth Operation with Quality Components
• Water Pressure: 0.5 bar to 5 bar
• Operates a single shower accessory: 1 Outlet

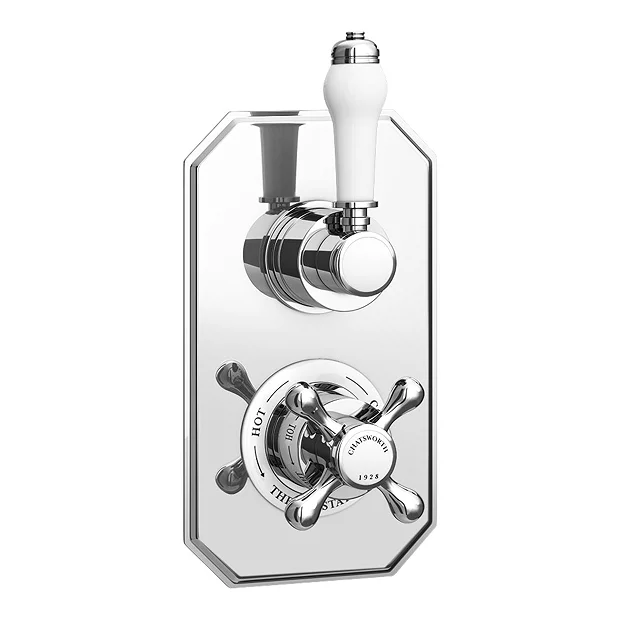

• Classic body with traditional white ceramic lever and cross head handle
• Suitable for modern pressurised plumbing systems.
• 150mm between pipe inlet centres
• Hot water temperature 55 to 85 Degrees
• With gravity fed systems a pump will be required, we recommend a universal or negative head pump


Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

All measurements are approximate

Pictures for illustrative purposes only

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
