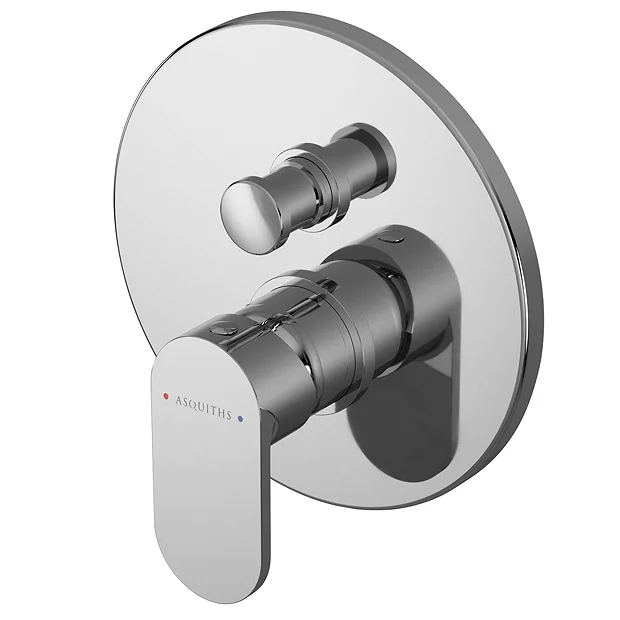

Asquiths Solitude Manual Concealed Shower Valve With Diverter

Asquiths Solitude Manual Concealed Shower Valve With Diverter – SHB5112

A time for solitude and meditation. This collection was designed with soft curves, each working harmoniously with the next to realise your place of solitude. The smooth curves of this valve will create a calming contemporary focal point in any bathroom. Shower valve operates a bath filler with shower or a showering area with two outlets.

To use the secondary shower outlet pull the diverter knob out – this action will divert the flow of water. To return the water flow to the primary shower outlet position simply push the diverter knob back to its original position.

Product Details

• Width: 170mm
• Height: 183mm
• Depth: 110mm
• Finish: Chrome
• Manufactured from high quality brass/ABS
• Type: Manual Concealed Shower Valve With Diverter
• Brand: Asquiths
• Product Code: SHB5112
• Style: Contemporary
• Range: Solitude
• Concealed
• Round Faceplate
• Water Outlets: 2
• Single lever ceramic disc technology for long life and smooth operation
• Excellent flow rates – even at low pressures
• Min operating pressure: 0.5 bar (3 bar if using Bath Filler)
• Max operating Pressure: 5 bar
• Inlet & outlet connections are all 1/2” BSP female threads.
• Designed & built in Britain

Guarantee: 20 Years

Flow Rates

0.1 Bar – 3.7 l/m
0.5 Bar – 8.4 l/m
1 Bar – 11.9 l/m
2 Bar – 16.9 l/m
3 Bar – 20.8 l/m
