Arezzo Brushed Brass Square Triple Thermostatic Shower Pack With 300 X 300mm Head + Handset

Arezzo Brushed Brass Square Triple Thermostatic Shower Pack with 300 x 300 x 300mm Head + Handset

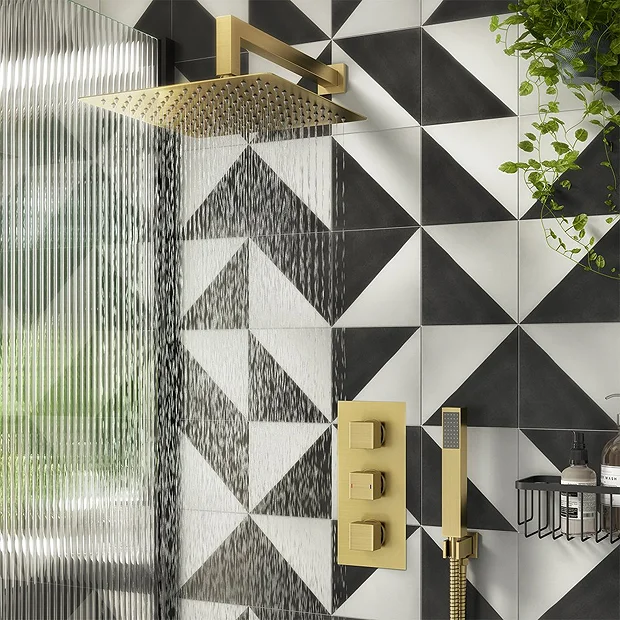

Embrace luxe styling with the Arezzo Square Thermostatic Shower Pack. This angular brushed brass combo features a large 300 x 300mm slimline yet indulgent rainfall shower head and comes with a rectangular shaped shower handset – perfect if you don’t want to get your hair wet. The 2-outlet shower valve enables you to precisely control both the temperature and flow to your liking. An easy to clean backplate in striking brushed brass completes the package. You can take your pick between the shower head and wand or use both for an immersive shower experience.

Shower Valves Details

• Width: 120mm
• Depth: 140mm
• Height: 265mm
• Style: Modern
• Colour/Finish: Brushed Brass
• Valve Handles: Square
• Solid Brass Internals
• Thermostatically controlled
• Thermostatic Cartridge
• Rectangular Faceplate
• Outlets: 2

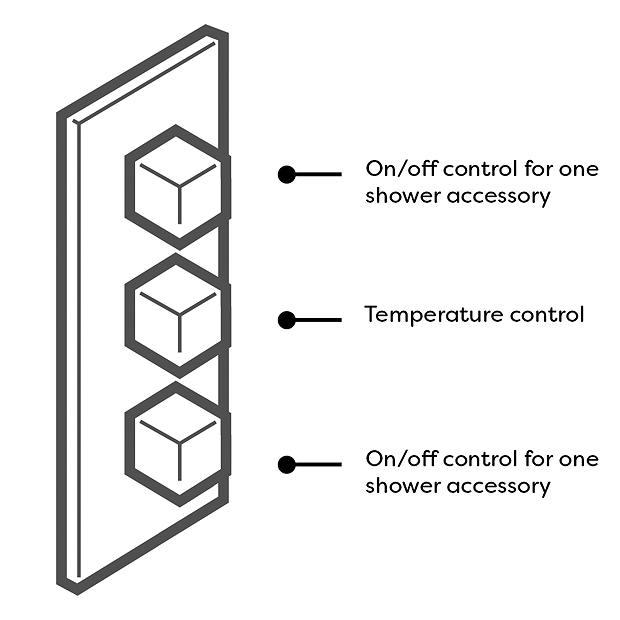

• Offers thermostatic showering via three easy-to-operate controls.
• Separate controls for temperature and flow.
• Operates two outlets separately or simultaneously.
• Water Pressure: 0.5 bar to 5 bar
• Can be fitted vertically or horizontally
• Suitable for modern pressurised plumbing systems.
• Automatic shut off in the event of hot or cold-water supply failure.
• Hot water temperature 55 to 85 Degrees
• Shower valve will not work efficiently on a gravity fed tank system unless a booster pump is installed.
• Should a pump be required we recommend a universal or negative head pump.
• Flow Rates:
• 0.5 bar – 9.6 L/M
• 1 bar – 14.1 L/M
• 2 bar – 20.5 L/M
• 3 bar – 24.8 L/M
• 4 bar – 28.3 L/M
• 5 bar – 32 L/M

Shower Head with Arm Details

• Shower Head Size: 300 x 300mm
• Shower Arm Length: 388mm
• Style: Modern
• Shape: Square
• Colour/Finish: Brushed Brass
• Material: Brass
• Thickness/Profile: 3mm (excluding swivel joint)
• 90-degree Bend
• Wall Mounted
• Pressure requirements: 0.5 bar minimum
• Inlet Connections: 1/2″ BSP
• Supplied with swivel joint Rub clean nozzles makes this item easy to clean and maintain

Shower Handset Details

• Depth: 64mm
• Height: 228mm
• Width: 40mm
• Style: Modern
• Colour/Finish: Brushed Brass
• Shape: Square
• Manufactured To The Highest Standards
• Rectangular Handset with Built in Outlet
• Suitable for all plumbing systems
• Eye-catching, brushed brass finish
• Outlet elbow covers unsightly fittings
• Matching 1.5m Shower Hose
• Quality finish
• Handset holder
• Connections: 15 mm (1/2″ BSP)



*Installation requires rear access behind the wall.

Images shown are for illustration purposes only.

All measurements are approximate

Guarantee: 3 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

Comprises

(1) Triple Square Handles Concealed Shower Valve

(1) (300 x 300mm) Ultra-Thin Square Head

(1) Square Wall Mounted 90 Degree Bend Shower Arm – 388mm

(1) Square Outlet Elbow with Parking Bracket, Flex & Handset

Gravity Fed Systems:

If you live in an older property, there’s a good chance you have a low-pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
