Arezzo 1200 X 900 Wet Room Pack – Matt Black

Arezzo 1200 x 900 Wet Room Pack – Matt Black (900mm Screen, Tray Former, Waste + Installation Kit)


Create a sleek showering area with one of our wet room packages, features a 8mm-thick glass screen, matt black profile with matching square support arm, tray former, shower waste and installation kit.

Ideal for creating a wetroom in a typical UK timber floor, the supplied tray former gives the correct gradients falling towards the shower waste for effective discharging of waste water.

The tray can be finished with a tile of your choice – either standard tiles cut to the fall of the drain, or decorative mosaic tiles (not included).

The installation kit includes a screw lock high flow waste designed to enable water to flow from the shower tray at a rate of 40 litres per minute. Features a stylish chrome finish shower grate.

For installations where the shower waste must be installed above the floor the Orion Wetroom Shower Substrate must be used in conjunction and is sold separately.

Glass Screen Details

• Height: 1950mm
• Width: 900mm
• Adjustment: 880-890mm
• Matt Black Aluminium Profile
• Frameless Design
• 8mm Toughened Safety Glass – Stronger and safer for your peace of mind
• Comes with a matt black square 1000mm stainless steel support bar (Trim to size)
• 2 Year Guarantee

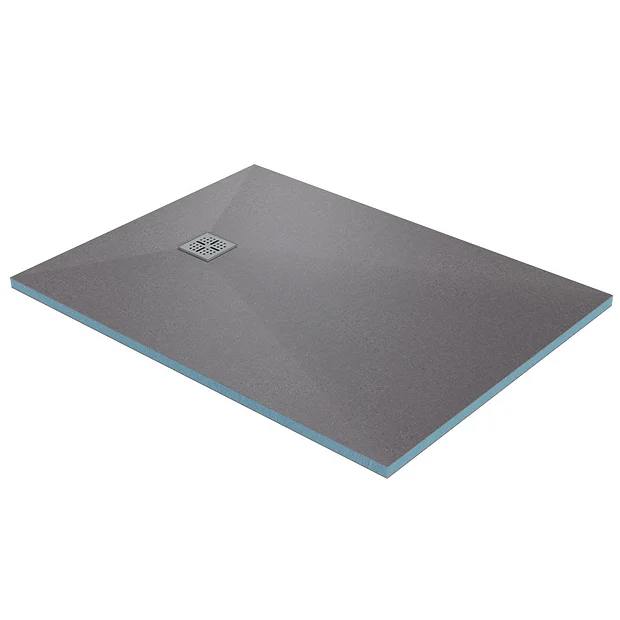

Tray Former Details

• End waste position
• Dimensions: 1200 x 900 x 30mm
• Can be used on timber floors
• Waterproof coated
• Ready for tiling
• Can be tiled with any size tiles
• Suitable for level access installation
• Factory sealed drain
• Can be trimmed down (max. 100mm)
• Suitable for domestic and commercial use
• Made in the UK
• 15 Year Guarantee

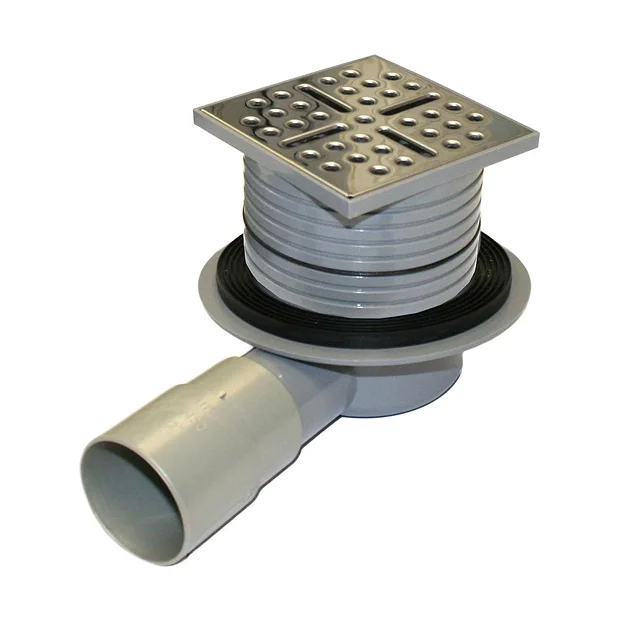

Shower Waste + Wetroom Installation Kit Details

• Required for use with all Orion tray formers and substrates
• Complete installation kit
• Includes high flow waste
• Chrome finish grate
• Easy to install
• Screw lock waste system
• Made in the UK
• Waste for use with trays only
• 15 Year Guarantee

Images are for illustration purposes only

All measurements are approximate

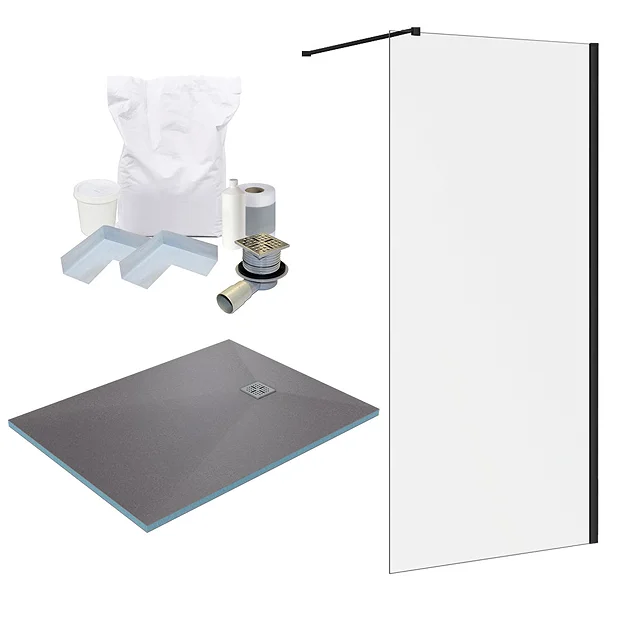

Package comprises of:

1 x H1950 x W900mm Wetroom Screen (Inc. Matt Black Profile + Support Arm)
1 x Wetroom Rectangular Shower Tray Former (End Waste – 1200 x 900 x 30mm)
1 x High Flow Shower Waste
1 x 5kg Fixing Adhesive
1 x 5m Waterproofing Tape
2 x Internal Corners
1 x 250ml Wood Floor Primer
1 x 500ml Tanking Membrane
